Context Menus
Available in: All plans
Last updated: 27-Feb-2026
Overview​

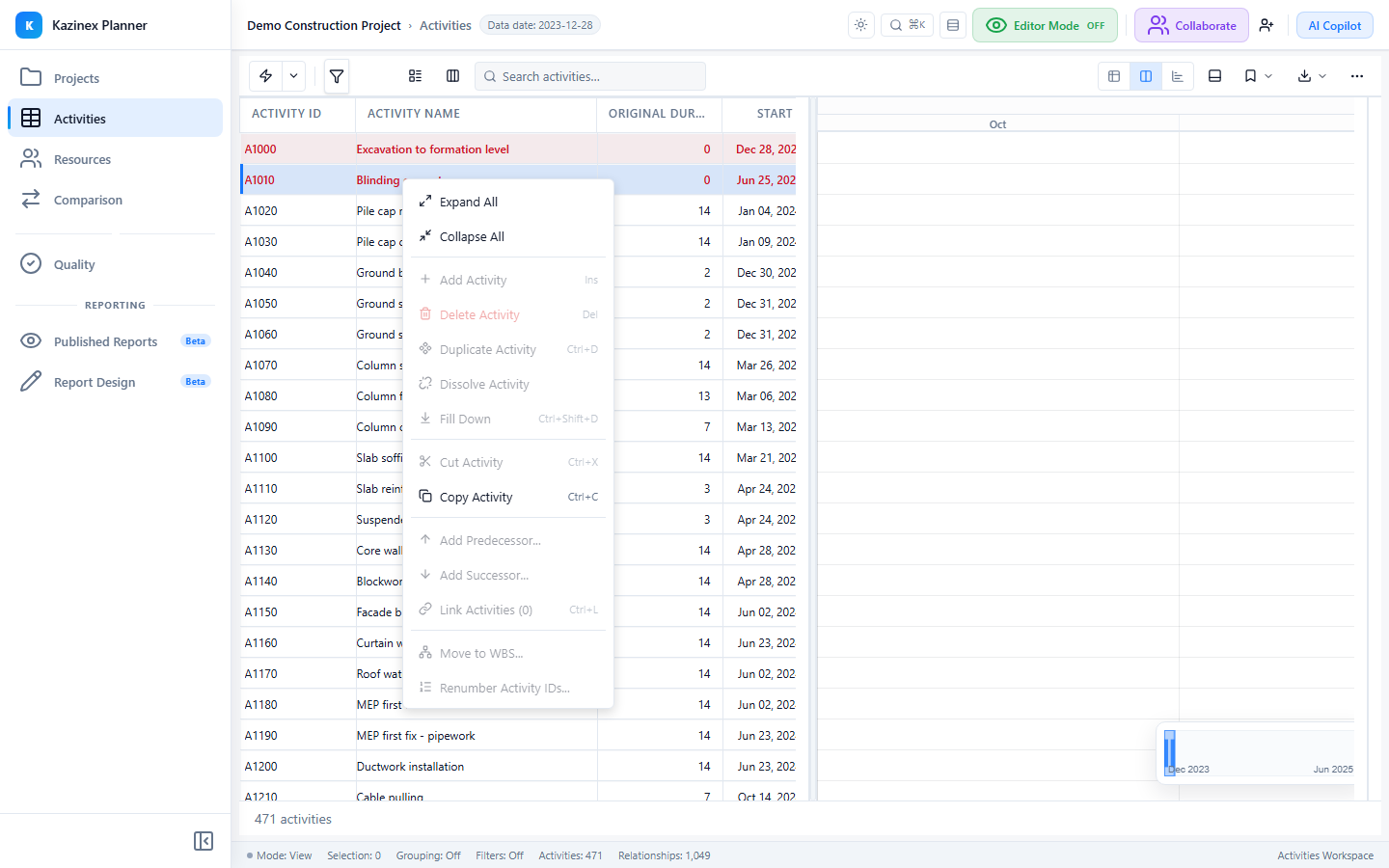

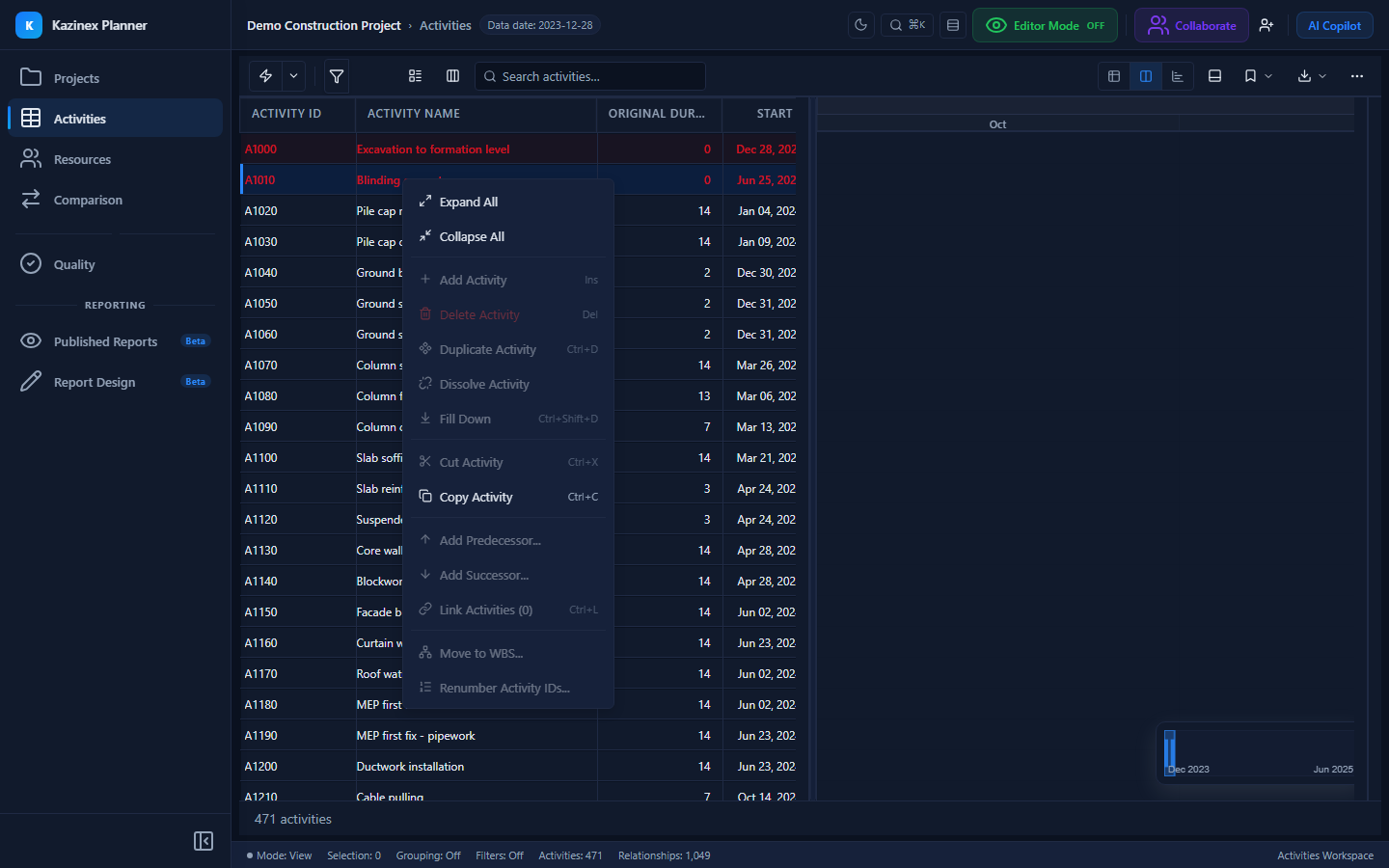

Right-click anywhere in the Activities workspace to open a context-sensitive menu. Kazinex provides five context menu targets, each with actions relevant to what you clicked on. You can also press Shift + F10 to open the context menu for the currently focused element.
All context menus are built on Ant Design menu components with keyboard navigation support.
Context Menu Targets​
Row Context Menu​
Right-click any activity row in the grid.
| Action | Description |
|---|---|
| View Details | Open the Activity Details panel for this activity |
| Edit Activity | Start inline editing on the clicked cell (Editor Mode) |
| Insert Activity Above | Add a new activity above this row (Editor Mode) |
| Insert Activity Below | Add a new activity below this row (Editor Mode) |
| Delete Activity | Remove this activity from the schedule (Editor Mode) |
| Copy Activity ID | Copy the Activity ID to your clipboard |
| Scroll to in Gantt | Pan the Gantt chart to centre this activity's bar |
Header Context Menu​
Right-click any column header.
| Action | Description |
|---|---|
| Sort Ascending | Sort the grid by this column (A→Z or low→high) |
| Sort Descending | Sort the grid by this column (Z→A or high→low) |
| Remove Sort | Clear sorting on this column |
| Group by This Column | Group activities by the values in this column |
| Remove Grouping | Clear grouping on this column |
| Hide Column | Remove this column from the current view |
| Column Chooser | Open the Column Chooser dialog |
Bar Context Menu​
Right-click a Gantt bar (task, milestone, or summary).
| Action | Description |
|---|---|
| View Details | Open the Activity Details panel |
| Scroll to in Grid | Highlight the corresponding row in the grid |
| Add Predecessor | Start drawing a dependency line from this bar (Editor Mode) |
| Add Successor | Start drawing a dependency line to this bar (Editor Mode) |
| Zoom to Fit | Adjust the Gantt zoom so this bar is centred and clearly visible |
The menu adapts based on bar type:
- Task bars show all actions.
- Milestone bars show all actions except duration-related ones.
- Summary bars show view and zoom actions only (summaries are read-only).
Background Context Menu​
Right-click an empty area of the Gantt chart.
| Action | Description |
|---|---|
| Zoom In | Increase the timescale magnification |
| Zoom Out | Decrease the timescale magnification |
| Zoom to Fit | Auto-fit the timescale to show all activities |
| Add Sight Line | Place a sight line marker at the clicked date |
| Go to Data Date | Pan the chart to centre on the data date |
The clicked date is passed to the menu via HeaderContextInfo or BackgroundContextInfo.
Dependency Context Menu​
Right-click a dependency line between two bars.
| Action | Description |
|---|---|
| View Relationship | Show predecessor ID, successor ID, type, and lag |
| Edit Lag | Open an inline editor to change the lag value (Editor Mode) |
| Change Type | Switch between FS, SS, FF, and SF (Editor Mode) |
| Delete Relationship | Remove this dependency (Editor Mode) |
The menu receives a DependencyContextInfo object with the relationshipId, relationshipType, predecessorId, successorId, and lag.
Group Row Context Menu​
When activities are grouped, right-click a group header row for additional actions:
| Action | Description |
|---|---|
| Expand All | Expand all groups in the grid |
| Collapse All | Collapse all groups in the grid |
| Expand This Group | Expand only this group |
| Collapse This Group | Collapse only this group |
Menu Registry​
Context menus are assembled dynamically by a Menu Registry that maps each target to a MenuBuilder function. This architecture allows extensions and plugins to add custom menu items in the future.
